CT Dose Nested Phantom Set
CT Dose Nested Phantom Set
Item# 76-424-4156ST
Regular price: $5,250.00
Sale price: $3,600.00

Product Description

This set of nested CTDI Phantoms are each made made from a solid casting (no glue lines in image) and have a solid center back that keeps the inner pieces from sliding through. This set may be used with any CT system to collect the data for maximum, mid-range, and minimum values of the tomographic section thickness.

The set consists of 3 pieces that when fully assembled are used for the adult body. The two smaller pieces are assembled to use for an Adult Head / Pediatric Body. The inner piece is used for the Pediatric Head. Each piece of this set comes with "l4" - .515 holes drilled 1cm from the outer diameter and the center phantom has a center hole. Acrylic rods are supplied to fill all the holes.

The CT Dose Phantoms were designed in accordance with the Food and Drug Administration’s performance standard for diagnostic x-ray systems, which includes regulations specifi cally applicable to CT systems (21 CFR 1020.33).

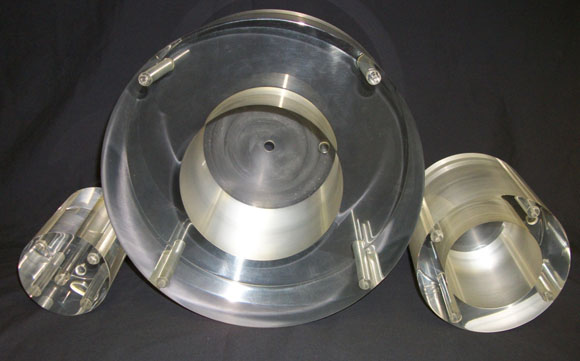

CT Dose phantom disassembled

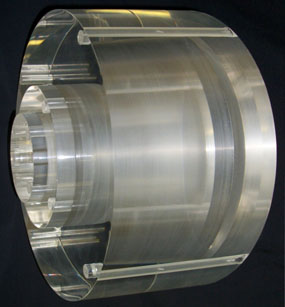

CT Dose phantom parts extended
Phantom shown with parts extended
 CT Dose phantom assembled
Assembled Phantom

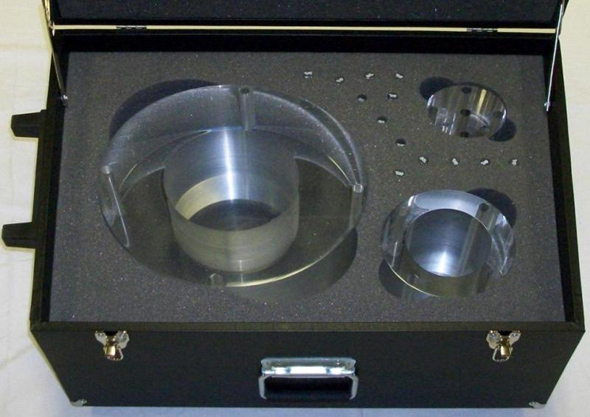

Dose Phantom in case open

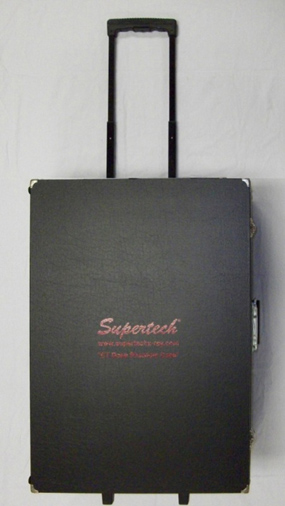

Dose Phantom front of case

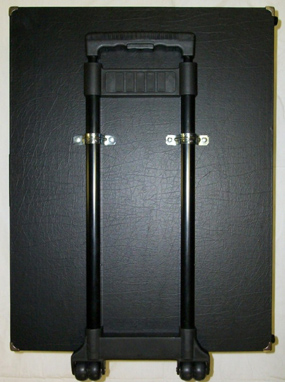

Dose Phantom back of case
Phantom includes a rugged rolling case with telescoping handle to make transporting and storage easy and convenient.


CT Nested Dose Phantom
76-424-4156ST 		Actual Weight Assembled Weight
Center Pediatric Head
(10cm diameter) 		3 lbs
Middle Adult Head / Pediatric Body
(16 cm diameter)		 5 lbs 8 lbs
Outer Adult Body
(32cm diameter)		 25 lbs 33 lbs

Phantom + Case Shipping Weight   60 lbs
