Interventional Arterial Ultrasound Phantom
ATS PVB-1 & PVB-3

Interventional Arterial Ultrasound Phantom<br />ATS PVB-1 &amp; PVB-3
Item# ATS-PVB-1-PVB-3
Regular price: $525.00
Sale price: $483.00
Model:

Product Description

    Tests Performed
  • Focal Zone
  • Sensitivity
  • Functional Resolution
  • Contrast Resolution (PVB-3 only)

        • Uses:
      • Quality Assurance
      • Clinical Performance
      • In-Process Manufacturing
      • Teaching

      The main difference between the PVB-1 and the PVB-3 is the contrast in the cavities. Please refer to product specifications below for further detail.

      The PVB series of Interventional Arterial Phantoms are constructed of a tissue mimicking rubber-based material. The phantoms are housed in a chemical resistant, injection molded polypropylene shell to permit sterilization be means of autoclaving.

      Model PVB-1 contains five cylindrical cavities. A 4 mm diameter cavity is located in the center of the phantom and four 2 mm cavities are positioned at 90º intervals around the central cavity. The edge to edge spacing of the four cavities relative to the central cavity are 1, 2, 3, and 4 mm.

      Model PVB-3 contains five cylindrical cavities. A 4.0 mm diameter cavity is located in the center of the phantom and four 2 mm gray scale targets ranging from +15 to -15 dB relative to the background material are located at 90° intervals around the central cavity. the edge to edge spacing of the four 2 mm cavities relative to the central cavity is 4 mm.

      The PVB is designed to evaluate the acoustical performance of an intra-arterial ultrasonic transducer prior to performing an examination of the patient.

      Recommended Care

      For best results the phantom should be kept clean at all times. In particular a build-up of dried coupling gel on the scan surface should be avoided. The phantom may be cleaned with warm water using a lint free cloth. Stubborn stains and dirt may be removed with a mild household cleaner. The use of petroleum solvents should be avoided since they may adversely react with the rubber-based material.



      Specifications ATS PVB-1 & PVB-3

      Tissue Mimicking Material
      Type: Urethane rubber
      Melting Point: 100°C
      Freezing Point: < -40°C
      Attenuation Coefficient: 0.5 dB/cm/MHz ± 5.0%
      Speed of Sound:1450 m/s ±1.0% at 23°

      General

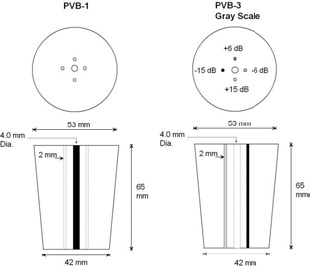

      Overall Dimensions PVB-1 PVB-3
      Major Diameter 53mm* 53mm*
      Minor Diameter 42mm* 42mm*
      Height 65mm* 65mm*
      Weight 110gm* 110gm*
      Housing Material Polypropylene Polypropylene
      Intra-luminal Cavity 1 1
      Cavity Diameter 4.0mm* 4.0mm*

      Targets
      Type Circular Cavities Echogenic, Cylindrical
      Number of Targets 4 4
      Diameter 2 2
      Length 65 mm 65 mm
      Radial Spacing 90º 90º
      Interval Spacing
      (edge to edge)      		 1, 2, 3, 4 mm 4 mm
      Contrast relative to
      background material (dB)      		 N/A +15,+6,-6,-15
      Price $483 $897
      *Nominal dimensions

      **Lifetime Warranty**
