Multi-Modality Pelvic Phantom
Ultrasound / MRI / CT
CIRS 048
Product Description
The Model 048 male pelvic phantom was designed for realistic abdominal ultrasound scanning of the bladder and prostate. The phantom includes pelvic bones, 177cc anechoic bladder, prostate, urethra, seminal vesicles and rectum enclosed in a rugged ABS housing.

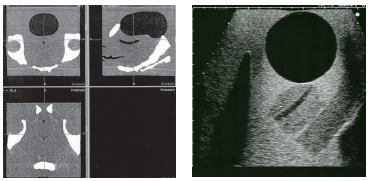

The Model 048 is made from materials that can be imaged under ultrasound, MRI and CT making the phantom useful for applications that require multiple modalities such as radiation treatment planning. The phantom is provided with certified prostate and bladder volumes to enable assessment of volumetric measurement accuracy. Modifications are available such as permanently embedded brachytherapy “dummy” seeds or gold fiducial markers for demonstration of target visualization.
Each phantom is sold with documented certification traceable to NIST. Custom labeling and a foam lined carry case are also available.
Supertech recommends the optional carrying case to help protect your phantom during transit and storage. The case is an additional $319.
To see our full line visit our main website.
http://www.supertechx-ray.com
The Model 048 is made from materials that can be imaged under ultrasound, MRI and CT making the phantom useful for applications that require multiple modalities such as radiation treatment planning. The phantom is provided with certified prostate and bladder volumes to enable assessment of volumetric measurement accuracy. Modifications are available such as permanently embedded brachytherapy “dummy” seeds or gold fiducial markers for demonstration of target visualization.
Each phantom is sold with documented certification traceable to NIST. Custom labeling and a foam lined carry case are also available.
|
Phantom Housing
Material: Black ABS 3/16” thick Dimensions: 18 cm X 18 cm X 18 cm Scanning Area: 16 cm X 16 cm Scanning Well: 2 cm deep Material: Saran based Background Material: Zerdine® Properties: Speed: 1540 m/s 22°C Attenuation: 0.50 dB/cm/MHz Contrast: +9 dB with respect to CIRS reference material Bladder Material: Zerdine® Properties: Speed: 1470 m/s at 22°C Attenuation: < 0.07 dB/cm/MHz Contrast: anechoic at 15 dB Volume: 177cc Prostate Material: Zerdine® Properties: Speed: 1540 m/s at 22°C Attenuation: 0.50 dB/cm/MHz Contrast: hypoechoic Volume: 45cc |
Urethra
Material: Zerdine® Properties: Contrast: hypoechoic Diameter: ¼” Seminal Vesicles Material: Zerdine® Properties: Contrast: isoechoic to prostate Diameter: ¼” Rectum Material: Zerdine® Properties: Contrast: isoechoic to prostate Diameter: 32 mm Pelvis Material: Tissue Equivalent epoxy resin Properties: Attenuation: Highly attenuating will cast shadows Optional Carrying Case Description: Foam lined, hard sided |
Supertech recommends the optional carrying case to help protect your phantom during transit and storage. The case is an additional $319.
