Multi-Modality Prostate Training Phantom
CIRS 053-MM
Product Description

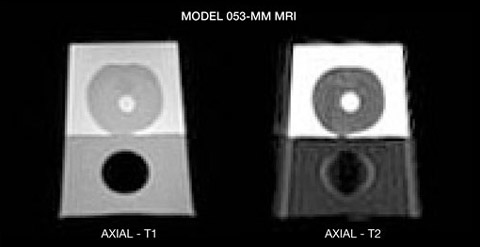

The ideal training device for Ultrasound, CT and MRI guided procedures
The CIRS Model 053-MM Multi-Modality Prostate Training Phantom is a disposable phantom developed for practicing procedures which involve scanning the prostate under ultrasound, CT or MRI.
The prostate along with structures simulating the rectal wall, seminal vesicles and urethra is contained within an 11.5 cm x 7.0 cm x 9.5 cm clear acrylic container. A 3 mm simulated perineal membrane enables various probes and surgical tools to be inserted into the prostate.

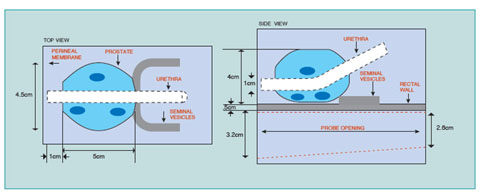

Model 053-MM Specifications:
Container:
Material: Clear acrylic
Dimensions: 11.5 x 7.0 x 9.5 cm
Front probe opening: 3.2 cm Ø
Rear probe opening: 2.6 cm Ø
Perineal Membrane:
4.5 cm Ø 3 mm thick urethane
Background Gel:
Similar to water with very little backscatter attenuation < 0.07 db/cm-MHz
Urethra:
Dimensions: 0.7 cm Ø
Material: Zerdine®(1) , low scatte
Seminal Vesicles:
Dimensions: 7 mm Ø x 10 cm long
Material: Zerdine®(1)
Properties: Speed = 1540 m/s
Attenuation = 0.5 dB/cm-MHz
Backscatter similar to liver tissue
Prostate:
Dimensions: 5 x 4.5 x 4.0 cm
Material: Blue Zerdine®(1), high scatter
Volume: approximately 53 cc
Rectal Wall:
Dimensions: 6 x 11 x 0.5 cm
Material: Zerdine®(1)
Properties: Speed=1540 m/s
Attenuation= 0.5 dB/cm-MHz
Backscatter similar to liver tissue
To see our full line visit our main website.
