Prostate Demonstration Ultrasound Phantom
Non-disposable urethane phantom for prostate imaging
CIRS 058
Product Description
The Model 058 is a derivative of the Model 053 Ultrasound Prostate Training Phantom. The Model 058 is durable and appropriate for repetitive demonstration scanning.

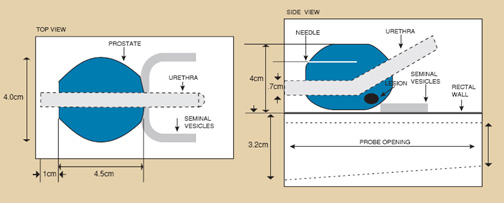

The prostate along with structures simulating the rectal wall, seminal vesicles and urethra is contained within an 11.5 cm X 7.0 cm X 9.5 cm clear container.
A needle is embedded within the prostate to demonstrate needle localization. The phantom also contains a simulated lesion and calcification cluster.
This phantom is an ideal demonstration device for rectal scanning.
Model 058 Specifications
Container:
Material: Clear PETG
Dimensions: 11.5 cm X 7.0 cm X 9.5 cm
Front probe opening: 3.2 cm diameter
Rear probe opening: 2.6 cm diameter
Background Gel:
Similar to water with very little backscatter attenuation < 0.20 db/cm/MHz
Urethra:
Dimensions: 0.7 cm diameter
Material: urethane, low scatter
Seminal Vesicles:
Dimensions: 7 mm diameter X 10 cm long
Material: urethane
Prostate:
Dimensions: 5 cm X 4.5 cm X 4.0 cm
Material: Blue urethane, high scatter
Volume: approximately 53 cc
Rectal Wall:
Dimensions: 6 cm X 11 cm X .5 cm
Material: Urethane, Backscatter similar to liver tissue
