Prostate Elastography Ultrasound Phantom
CIRS 066
Product Description
The ideal demonstration tool for sonoelastography
The CIRS Model 066 Prostate Elastography Phantom is a disposable phantom developed for demonstrating procedures which involve the exciting new modality of sonoelastography. The prostate, along with structures simulating the rectal wall, seminal vesicles and urethra, is contained within an 11.5 cm X 7.0 cm X 9.5 cm clear plastic container. A 5 mm thick simulated perineal membrane enables various probes and surgical tools to be inserted into the prostate. Based on the popular CIRS Tissue Equivalent Ultrasound Prostate phantom. The Model 066 contains 3 isoechoic lesions that are three times harder than the simulated prostate tissue. Under normal ultrasound they cannot be detected but are readily visible on elastograms.

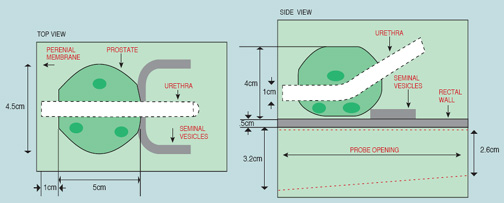

Model 066 Specifications
Container:
Material: Clear PETG
Dimensions: 11.5 cm X 7.0 cm X 9.5 cm
Front probe opening: 3.2 cm diameter
Rear probe opening: 2.6 cm diameter
Perineal Membrane:
4.5 cm diameter
5 mm thick urethane
Background Gel:
Similar to water with very little backscatter attenuation < 0.07 db/cm/MHz
Urethra:
Dimensions: 0.7 cm diameter
Material: Zerdine®(1), low scatter
Seminal Vesicles:
Dimensions: 7 mm diameter X 10 cm long
Material: Zerdine®(1)
Properties: Speed=1540 m/s
Attenuation= 0.5 dB/cm/MHz
Backscatter similar to liver tissue
Prostate:
Dimensions: 5 cm X 4.5 cm X 4.0 cm
Material: Green Zerdine®(1), high scatter
Volume: approximately 53 cc
Rectal Wall:
Dimensions: 6 cm X 11 cm X 0.5 cm
Material: Zerdine®(1)
Properties: Speed=1540 m/s
Attenuation= 0.5 dB/cm/MHz
Backscatter similar to liver tissue
Lesions:
3 embedded isoechoic lesions, 1 cm diameter randomly placed.
Normal Ultrasound Image
