Prostate Training Phantom Brachytherapy,
Minimal Needle Tracks
CIRS 053G
Product Description
The ideal training device for ultrasound guided procedures.

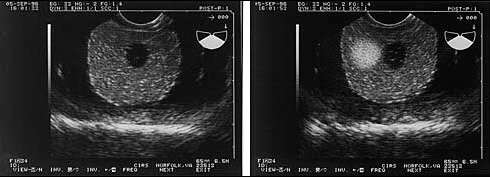

The CIRS Model 053G Ultrasound Prostate Training Phantom is a disposable phantom developed for practicing procedures which involve scanning the prostate with a rectal probe.
The prostate along with structures simulating the rectal wall, seminal vesicles and urethra is contained within an 11.5 cm X 7.0 cm X 9.5 cm clear acrylic container. A 3 mm simulated perineal membrane enables various probes and surgical tools to be inserted into the prostate.
This phantom is an ideal training device for ultrasound guided radioactive seed implantation. Uses an oil-based gel for minimal needle tracks.

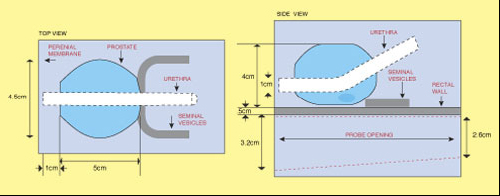

Model 053-G Specifications
Container:
Material: Clear acrylic
Dimensions: 11.5 cm X 7.0 cm X 9.5 cm
Front probe opening: 3.2 cm diameter
Rear probe opening: 2.6 cm diameter
Perineal membrane: 4.5 cm diameter 3 mm thick urethane
Background gel: Similar to water with very little backscatter attenuation< 0.07 db/cm/MHz
Urethra:
Dimensions: 0.7 cm diameter
Material: Zerdine®(1) , low scatter
Seminal vesicles:
Dimensions: 7 mm diameter X 10 cm long
Material: Zerdine
Properties: Speed=1540 m/s
Attenuation= 0.5 dB/cm/MHz
Backscatter similar to liver tissue
Prostate:
Dimensions: 5 cm X 4.5 cm X 4.0 cm
Material: Blue
Zerdine, high scatter
Volume: approximately 53 cc
Rectal wall:
Dimensions: 6 cm X 11 cm X 0.5 cm
Material: Zerdine®(1)
Properties: Speed=1540 m/s
Attenuation= 0.5 dB/cm/MHz
Backscatter similar to liver tissue
